Test Criterion：
        D.O.P.
                            Testing    95%  at      0.3 μm
        P.S.L.



---

Qualified with：
        En 1822 Class H10

Specifications
Dimensions(mm) without Inlet Duct			Capacity	Inital P.D.	Final P.D.
Length (L)	Width (W)	Depth (D)

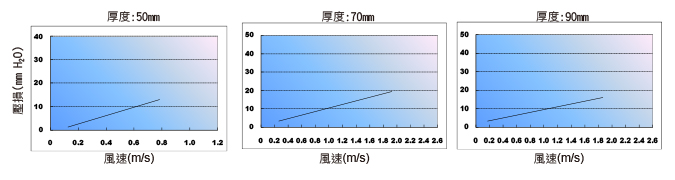

305	610	50/70/90	4.8/8.1/11.5 CMM	D 50mm:12.5mm H2O *Face Velocity:0.65m/sec D 70mm:12.5mm H2O *Face Velocity:0.85m/sec D 90mm:12.5mm H2O *Face Velocity速:1.25m/sec	D 50mm: 25.0mm H2O D 70mm: 25.0mm H2O D 90mm: 25.0mm H2O *Recommend
610	610	50/70/90	10.1/17.2/24.2 CMM
760	610	50/70/90	12.7/21.6/30.5 CMM
915	610	50/70/90	15.4/26.2/37.0 CMM
1220	610	50/70/90	20.7/35.2/51.8 CMM
570	570	50/70/90	6.3/7.6/7.6 CMM	D 50mm:8.0mm H2O Face Velocity:0.35m/sec D 70mm:5.5.0mm H2O Face Velocity:0.35m/sec D 90mm:3.5mm H2O Face Velocity:0.55m/sec	D 50mm: 11.0mm H2O D 70mm: 11.0mm H2O D 90mm: 7.0mm H2O *According to FU Performance
1170	570	50/70/90	12.5/15.1/15.1 CMM
