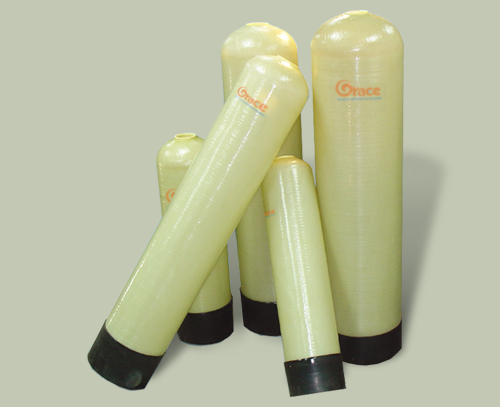

FRP Softener Vessels are ideal solutions for general commercial and industrial water treatment with essentially outstanding features of anti-corrosion and cost-effectiveness. Constructed by seamless Polyethylene and strengthened Fiber Reinforced Plastic (FRP) liners, all vessels are roved by FRP filament and sealed with high quality epoxy resin. Grace supplies a comprehensive series of NSF 44 certified FRP pressure vessels which are able to satisfy different needs and demanding requirements.
Vessels are constructed by food grade seamless Polyethylene and strengthened FRP liners, providing wide chemical compatibility.
Quality assurance is proved by NSF 44 certificate.
Vessels are widely compatible with commercial and industrial control valves.
Manways, side flanges, sight glasses and optional water distribution systems are available for customized requests.
| Material of Construction |
Inner: Polyethylene, Fiber Reinforced Plasic(FRP) Outer: Wound FRP Filament with Epoxy Resin Seal |
|---|---|
| Inlet/Outlet Size |
2.5"- 8" NPSM threads (Polypropylene), 4"-8" UN threads (ABS), 4.5"- 8" Buttress (ABS), 6" Flange (FRP) |
| Operating Pressure |
10 bar at 49℃ |
| Applications | Pre RO, Ion Exchange, Water Softener, Waste Water Filtration, Household Water Filtration, Food & Beverage, Water Storage |
