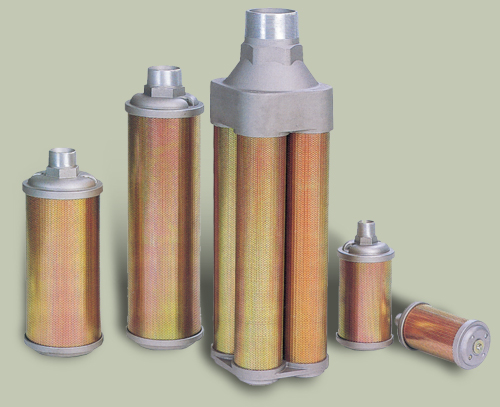

XY Series Muffler
Produced a kind of unique air exhaust muffler after researching correlative productions of
Allied witan in U.S. Material primary of glasscotton and the others from U.S. have the same function as the imported ones by reducing noise at neast by 30dB. By-pass safe valve switching pressure is 2.0 kgf/cm2.
| Specifications | |||||
|---|---|---|---|---|---|
| Type | Z | H | h | D | Chart |

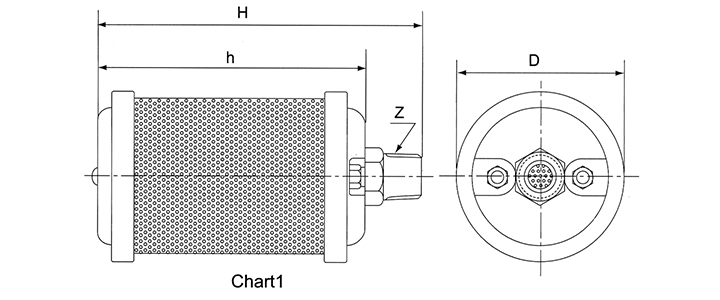

| XY-05 | 1/2" | 159 | 125 | Ø80 | Chart1 |
| XY-07 | 3/4" | 180 | 156 | Ø87 | |
| XY-10 | 1" | 218 | 183 | Ø99 | |
| XY-12 | 1 1/4" | 218 | 183 | Ø99 | |
| XY-15 | 1 1/2" | 340 | 297 | Ø133 | |
| XY-20 | 2" | 470 | 432 | Ø133 | |
| XY-30 | 3" | 588 | 467 | 173x173 | Chart2 |
| XY-60 | 6" | 790 | 619 | 275x275 | |
