Test Criterion：
        D.O.P.                        99.999%
                    Testing                              at      0.3 μm
        P.S.L.                         99.97%



Qualified with：
        En 1822 Class H11/H12/H13/H14
        IES RP-CC-001.3 TYPE A/B/C/D

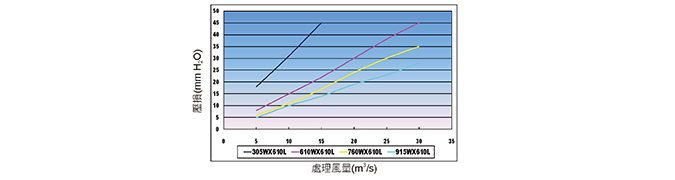

Specifications
Dimensions(mm)
without Inlet Duct		 Capacity Initial P.D. Final P.D.
Length
(L)		 Width
(W)		 Depth
(D)
305 305 150 3.9 CMM 25.4mm H2O
*Face Velocity:0.85m/sec		 50.8mm H2O
305 610 150 8.1 CMM
610 610 150 17.2 CMM
760 610 150 21.6 CMM
915 610 150 26.2 CMM
1220 610 150 35.2 CMM
1525 610 150 44.2 CMM
1830 610 150 53.2 CMM


Test Criterion：
        D.O.P.                        99.999%
                    Testing                              at      0.3 μm
        P.S.L.                         99.97%



Qualified with：
        En 1822 Class H11/H12/H13/H14
        IES RP-CC-001.3 TYPE A/B/C/D

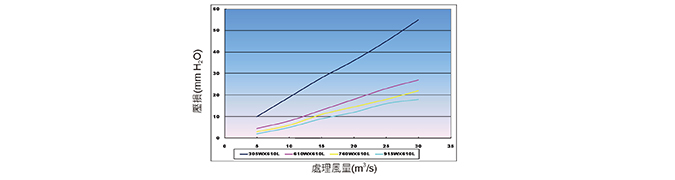

Specifications
Dimensions(mm)
without Inlet Duct		 Capacity Initial P.D. Final P.D.
Length
(L)		 Width
(W)		 Depth
(D)
305 305 150 6.1 CMM 25.4mm H2O
*Face Velocity:1.34m/sec		 50.8mm H2O
305 610 150 13.8 CMM
610 610 150 27.0 CMM
760 610 150 34.0 CMM
915 610 150 41.0 CMM
1220 610 150 35.2 CMM
1525 610 150 44.2 CMM
1830 610 150 53.2 CMM


Test Criterion：
        D.O.P.                        99.999%
                    Testing                              at      0.3 μm
        P.S.L.                         99.97%



Qualified with：
        En 1822 Class H11/H12/H13/H14
        IES RP-CC-001.3 TYPE A/B/C/D

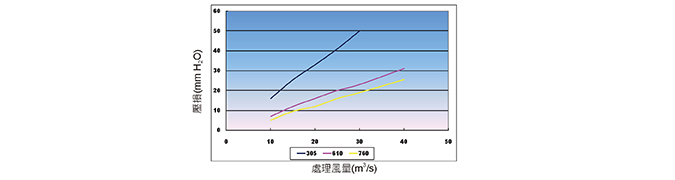

Specifications
Dimensions(mm)
without Inlet Duct		 Capacity Initial P.D. Final P.D.
Length
(L)		 Width
(W)		 Depth
(D)
305 305 290 7.1 CMM 25.4mm H2O
*Face Velocity:0.85m/sec		 50.8mm H2O
305 610 290 15.0 CMM
610 610 290 31.5 CMM
760 610 290 39.6 CMM
915 610 290 48.0 CMM
1220 610 290 64.6 CMM


Test Criterion：
        D.O.P.                        99.999%
                    Testing                              at      0.3 μm
        P.S.L.                         99.97%



Qualified with：
        En 1822 Class H11/H12/H13/H14
        IES RP-CC-001.3 TYPE A/B/C/D

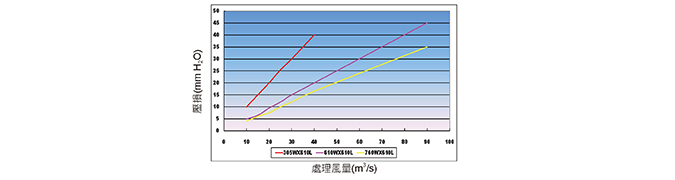

Specifications
Dimensions(mm)
without Inlet Duct		 Capacity Initial P.D. Final P.D.
Length
(L)		 Width
(W)		 Depth
(D)
305 305 290 12.7 CMM 34.0mm H2O
*Face Velocity:2.80m/sec		 50.8mm H2O
305 610 290 26.9 CMM
610 610 290 56.6 CMM
760 610 290 71.2 CMM
915 610 290 86.6 CMM
1220 610 290 116.2 CMM
