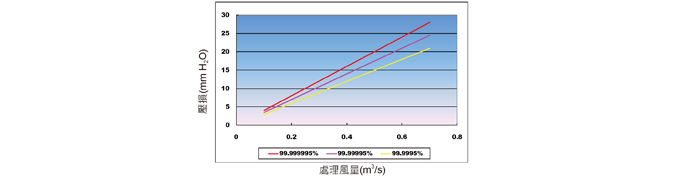

Test Criterion：
        D.O.P.                       99.999995%               0.3 μm
        P.S.L.      Testing      99.99995%      at      0.3 μm
        D.O.P.                           99.9995%                0.3 μm



---

Qualified with：
        En 1822 Class U15~U17
        IES RP-CC-001.3 TYPE F

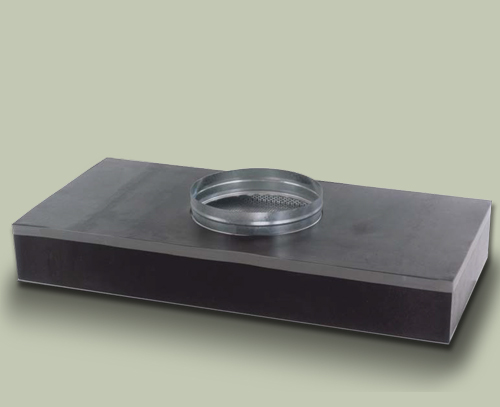

Standard Capacity
Type	Dimensions(mm) without Inlet Duct			Capacity	Initial P.D.	Final P.D.
	Length (L)	Width (W)	Depth (D)
Ceiling Panel	1220	610	150	20.7 CMM	17.0mm H2O *Face Velocity:0.5m/sec	34.0mm H2O
Light Duty T-Bar	1210	600	150	20.2 CMM
Heavy Duty T-Bar	1170	570	150	18.5 CMM
Ceiling Panel	610	610	150	10.1 CMM
Light Duty T-Bar	600	600	150	9.7 CMM
Heavy Duty T-Bar	570	570	150	8.7 CMM

Standard diameter of inlet duct are 14"Ø(350mm),12"Ø(300mm) and 10"Ø(250mm).

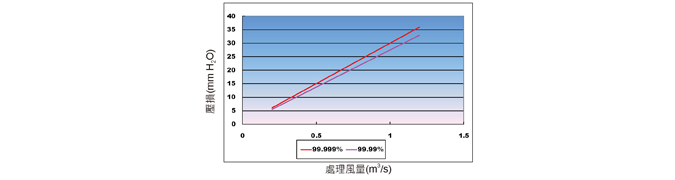

Test Criterion：
        D.O.P.                        99.999%                  0.3 μm
        P.S.L.      Testing         99.99%      at        0.3 μm
        D.O.P.                           99.97%                 0.3 μm

Qualified with：
        En 1822 Class H11/H12/H13/H14
        IES RP-CC-001.3 TYPE A/B/C/D
