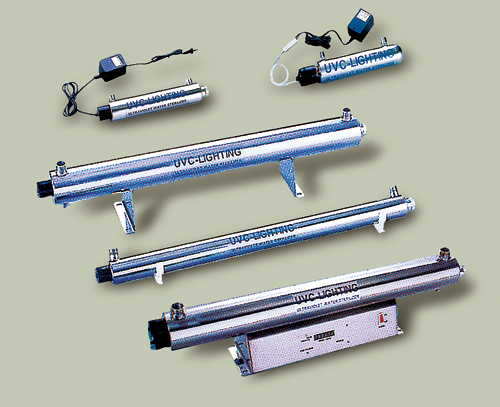

Ultraviolet disinfection is one of the most popular technologies applied in water treatment because of its convenience and non side-effect advantage. UV efficiently kills algae, fungi, germs and virus in process water without generating harmful by-products. Grace UV systems are designed in compact sizes and accommodate effective UVC lamps, ensuring high quality of disinfection and purification. Sterilizers are available for processes from small volume to big scale, satisfying various applications and demanding requirements.
Sterilizers are equipped with effective UVC lamps which have superior disinfection performance.
Enable to inactivate micro-organisms within seconds without generating harmful side-effects.
Treatment chambers and cabinets are completely constructed by stainless steel, featuring great durability and sustainability.
Electronic ballasts and compact control cabinets make more efficient and convenient system
surveillance.
| Type | 101 | 201 | 401 | 601 | 1201 | 2402 | 3603 |
|---|---|---|---|---|---|---|---|
| Flow Rate | 0.5 GPM 2.0 LPM |
1.5 GPM 6.0 LPM |
4 GPM 15 LPM |
6 GPM 22 LPM |
12 GPM 45 LPM |
24 GPM 90 LPM |
36 GPM 136 LPM |
| Operating Watts | 6W × 1 | 14W × 1 | 24W × 1 | 32W × 1 | 39W × 1 | 39W × 2 | 39W × 3 |
| Inlet/Outlet Size | 1/4"NPTM | 1/4"NPTM | 1/2"NPTM | 1/2"NPTM | 3/4"NPTM | 1"NPTM | 1 1/2"NPTM |
| Number of Lamp | 1 | 1 | 1 | 1 | 1 | 2 | 3 |
| Dimensions(mm) | 320×Ø50.5 | 340×Ø64 | 512×Ø64 | 680×Ø64 | 900×Ø64 | 900×Ø100 | 940×Ø140 |
| Type | 5004 | 6005 | 8006 | 10008 | 660W-M | 825W-M |
|---|---|---|---|---|---|---|
| Flow Rate | 50 GPM 189 LPM |
60 GPM 227 LPM |
80 GPM 303 LPM |
100 GPM 379 LPM |
120 GPM 454 LPM |
150 GPM 568 LPM |
| Operating Watts | 39W × 4 | 39W × 5 | 39W × 6 | 39W × 8 | 55W × 12 | 55W × 15 |
| Inlet/Outlet Size | 1 1/2"NPTM | 2" or 2 1/2" Flange | 4" or 5" Flange | |||
| Number of Lamp | 4 | 5 | 6 | 8 | 12 | 15 |
| Dimensions(mm) | 940×Ø140 | 940×Ø140 | 940×Ø160 | 940×Ø220 | 970×Ø300 | 970×Ø390 |
| Applications | Household Water Filtration, Aquarium, RO/DI, Food & Beverage, Well Water Treatment, Pharmaceutical, Laboratory Facilities, Electronics |
|---|
