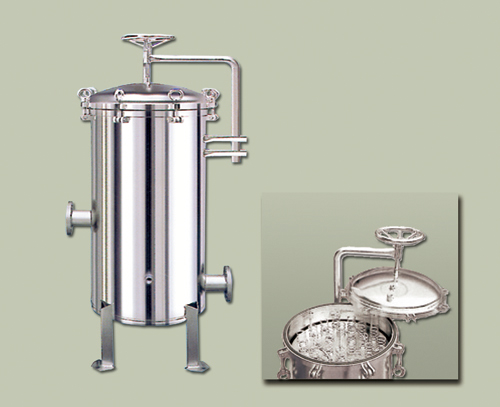

High-Flow Multi-Cartridge Filter Housings are designed for processes requiring significant flow rate with capacity from 13 rounds to more than 150 rounds of filter cartridges. The design of davit lifter makes top cover removal and element change out quick, easy and safe. Suitable for a broad range of liquid processes, the CE registered multi-cartridges filter housings accept different cartridge end cap styles in DOE and SOE.
| Length of Cartridge | 10, 20, 30, 40 inch |
|---|---|
| Number of Cartridges | 9 ~ 200 |
| Material of Construction | SUS304, SUS316, SUS316L |
| Inlet/Outlet Size | 2 ~ 15 inch PT/NPT JIS/ANSI/DIN Flange Sanitary Clamp |
| Flow Rate | 0 ~ 48 CMH ( 12) 0 ~ 200 CMH ( 50) 0 ~ 400 CMH (100) 0 ~ 600 CMH (150) Actual flow rates will be determined on element selection and fluid viscosity. |
| Operating Pressure | 10 bar |
| Applications | Inks & Polymers Filtration, Paints & Lacquer Filtration, Chemicals, Petrochemicals, Electronics, Waste Water Treatment, Food & Beverage, Pharmaceuticals, Pre RO |
