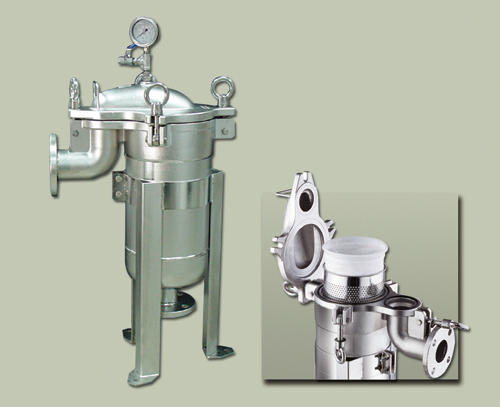

    Top-Loading High-Pressure Bag Filter Housings are manufactured by heavy-duty stainless steel components to meet the most demanding applications. The top-loading design highly utilizes the filter housings with results of minimum headroom of unfiltered liquid, and high filtration performance. Height of the housing is adjustable by the design of mounting legs module, making installation flexible and adaptable. Swing bolt closure enables the housing to withstand higher pressure and perform better sealing.

Flow Rate Bag Size 1:0 ~ 20 CMH    Bag Size 2:0 ~ 45 CMH
Actual flow rates will be determined on
element selection and fluid viscosity.
Material of Construction SUS304, SUS316, SUS316L
Inlet/Outlet Size 2"、2 1/2" Flange
Operating Pressure 10 bar
Applications Inks & Polymers Filtration, Paints & Lacquer Filtration, Chemicals, Petrochemicals, Electronics, Waste Water Treatment, Food & Beverage, Pharmaceuticals, Pre RO
