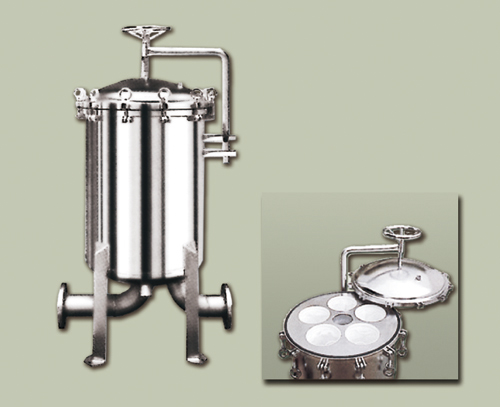

    High-Flow Multi-Bags Filter Housings are manufactured by heavy duty stainless steel components to meet demanding applications. With big capacity of multi-rounds filter bags, the housings are able to process significant flow rate while remaining high filtration performance. The incorporation of davit lifter and turntable makes operation convenient and safe. Closing by symmetric swing bolts sitting around top cover, the housings perform excellent sealing and high pressure withstanding capability.


Bag Size Size 1, 2
Number of Bag 2 ~ 50
Material of Construction SUS304, SUS316,SUS316L
Inlet/Outlet Size 2 ~ 15 inch
PT/NPT    JIS/ANSI/DIN Flange    Sanitary Clamp
Flow Rate 0 ~ 2250 CMH
Actual flow rates will be determined on
element selection and fluid viscosity.
Operating Pressure 10 bar
Applications Inks & Polymers Filtration, Paints & Lacquer Filtration, Chemicals, Petrochemicals, Electronics, Waste Water Treatment, Food & Beverage, Pharmaceuticals, Pre RO
