HOME>>Products>>Liquid Filtration>>Filter Housings>>High-Pressure Stainless Steel Bag Filter Housings

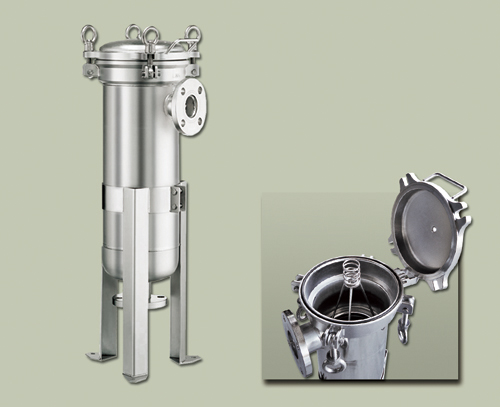

    High-Pressure Stainless Steel Bag Filter Housings are manufactured by heavy-duty stainless steel with advantages of superior chemical resistance and high pressure endurance. Height of the housing is adjustable by the design of mounting- legs module, offering flexible and adaptable installation. Symmetric swing bolts sitting around the top cover provide convenient top cover removal, better sealing performance and enhanced safety.


Flow Rate Bag Size 1:0 ~ 20  CMH    Bag Size 2:0 ~ 45  CMH
Bag Size 3:0 ~ 4.5 CMH    Bag Size 4:0 ~ 10  CMH
Actual flow rates will be determined on
element selection and fluid viscosity.
Material of Construction SUS304, SUS316,SUS316L
Inlet/Outlet Size 1、1 1/2、2、2 1/2、3、4 inch
PT/NPT    JIS/ANSI/DIN Flange    Sanitary Clamp
Type Nut fixing
Operating Pressure 10 bar
Applications Inks & Polymers Filtration, Paints & Lacquer Filtration, Chemicals, Petrochemicals, Electronics, Waste Water Treatment, Food & Beverage, Pharmaceuticals, Pre RO
