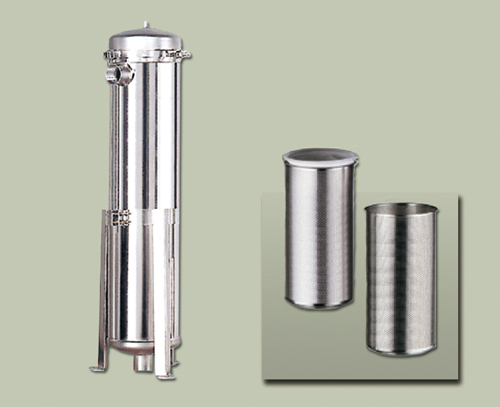

    Stainless Steel Bag Filter Housings are recommended as economic entry models for commercial and general filtration processes with the features of light-weight and low pressure drop. The clamp closure and threaded coupling make closure quick and easy. Height of the housing is adjustable by the design of mounting-legs module. Constructed by 100% stainless steel, the housings offer superior corrosion resistance for a wide range of applications while staying in consistent filtration performance.

Flow Rate Bag Size 1:0 ~ 20  CMH    Bag Size 2:0 ~ 45  CMH
Bag Size 3:0 ~ 4.5 CMH    Bag Size 4:0 ~ 10  CMH
Actual flow rates will be determined on
element selection and fluid viscosity.
Material of Construction SUS304, SUS316,SUS316L
Inlet/Outlet Size 1、1 1/2、2、2 1/2、3、4 inch
PT/NPT    JIS/ANSI/DIN Flange    Sanitary Clamp
Type Clamp
Operating Pressure 7 bar
Applications Inks & Polymers Filtration, Paints & Lacquer Filtration, Chemicals, Petrochemicals, Electronics, Waste Water Treatment, Food & Beverage, Pharmaceuticals, Pre RO/DI
