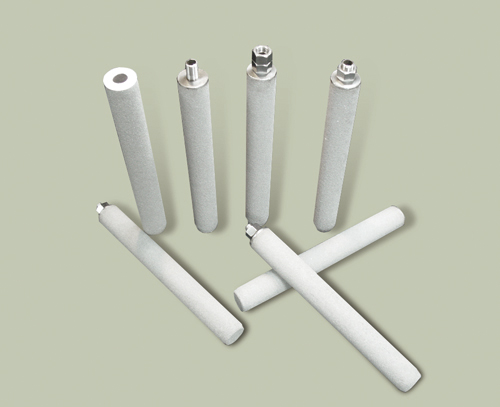

Grace Sintered Metal Filter Cartridges are made of stainless steel powders and produced by processes of high temperature diffusion and sintering press. With advantages of high strength, rigid construction and uniform permeability, sinter metal cartridges are widely used in industrial applications requiring high temperature, corrosive resistance and high removal efficiency. Grace supplies standard sinter cylindrical cartridges but also customized products to meet different demands.
| Filter Media | SUS304, SUS316, SUS316L, Titanium, nickel, copper and other metal |
|---|---|
| Nominal Length | 5, 10, 20, 30, 40 inch Other Customized Sizes |
| Micron Rating | 0.5 ~ 200 μm |
| Type | Filter Cartridge, Filter Disc |
| End Cap | DOE, 2-222, 2-226 |
| Max Operating Temperature | 450℃ |
| Max Operating Pressure | 5 ~ 150 bar |
| Applcations | CPF, CPL, Process Gases, Petrochemical, Strong Acid & Alkali, Seperation, Silencing, Optoelectronics, Food & Beverages, PCB, High Viscocity Process, Polymer Filtration |
