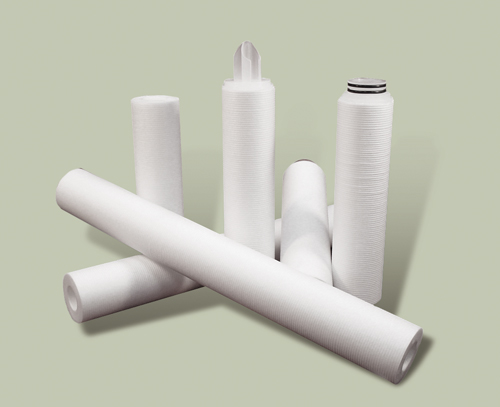

Grace Absolute Rated Melt Blown Filter Cartridges are constructed by an innovative design that utilizes flow pattern progressively from exterior surface to interior center. This design provides significant service life while maintaining consistent filtration efficiency. Manufactured with a truely graded density, the cartridges exhibit absolute rate at 99.9% and exceptional dirt holding capacity.

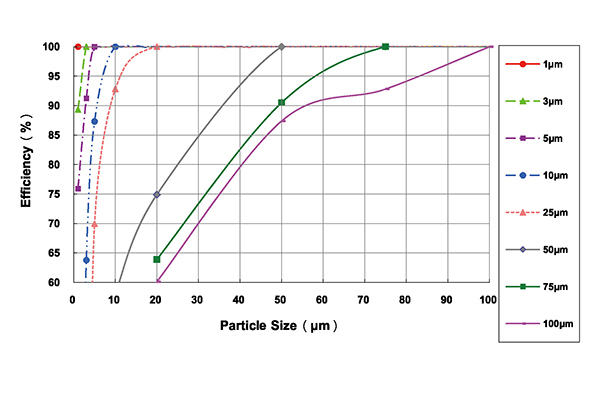

Absolute rate at 99.9% efficiency (Beta Ratio: 1000) with micron ratings from 1 μm to 100 μm.
Continuously gradient pore construction increases dirt holding capacity.
100% polypropylene depth filter cartridges for broad chemical compatibility.
Free of binders, additives and lubricants.
Manufactured by FDA grade polypropylene resin.
| Type | Absolute-Rated Filter Cartridges |
|---|---|
| Filter Media | Polypropylene |
| Nominal Length | 5, 6, 9.75, 10, 19.5, 20, 29.25, 29.5, 30, 39, 40 inch Other Customized Sizes |
| Micron Rating | 1, 3, 5, 10, 25, 50, 75, 100 μm |
| End Cap | DOE, 2-222 Flat, 2-222 Fin, 2-226 Flat, 2-226 Fin |
| Operating Conditions | △P : 4.0 bar at 25℃, 2.0 bar at 60℃, 1.0 bar at 80℃ |
| Applcations | Plating Solutions, Pre RO/DI, Chemicals, Petrochemical Process, Food & Beverage, Electronics |
