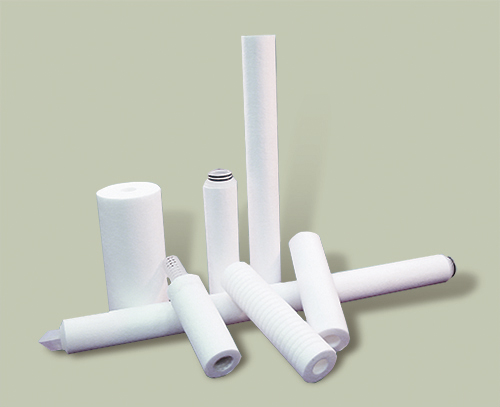

    Grace high performance PP Melt Blown Filter Cartridges are constructed from high-tech and precisely automatic controlled machines. The cartridges are 100% made of FDA grade polypropylene resin which is ideal for most general filtration requirements. The fiber matrix of the filter cartridge has been engineered to provide structural integrity throughout the long service life and stable pressure drop. Excellent character of non-fiber releasing provides optimum fluid purity and eliminates foaming.


100% polypropylene construction provides excellent chemical compatibility with a variety of process fluids and applications.

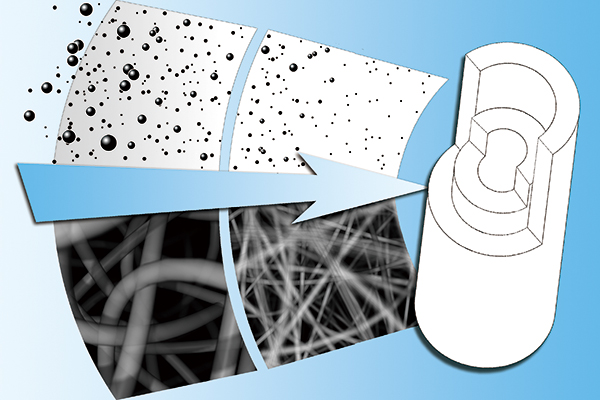

Graded pore construction provides optimum particle retention and prevents media migration, ensuring consistent filtration performance.

Free of binders, additives and lubricants.

Low pressure drop, high dirt holding capacity and long service life.

Manufactured by FDA grade polypropylene resin.


Type Melt-Blown Filter Cartridges
Filter Media Polypropylene
Nominal Length 5, 6, 9.75, 10, 19.5, 20, 29.25, 29.5, 30, 39, 40 inch
Other Customized Sizes
Micron Rating 1, 5, 10, 25, 50, 75, 100 μm
End Cap DOE, 2-222 Flat, 2-222 Fin, 2-226 Flat, 2-226 Fin
Operating Conditions △P : 3.0 bar at 25℃, 2.0 bar at 40℃, 1.0 bar at 60℃
Applications Plating Solutions, Pre RO/DI, Chemicals, Petrochemical Process, Food & Beverage, Electronics
