| Nominal Length | 5, 10, 20, 30, 40, 50, 60, 70 inch |
|---|---|
| Outside Diameter | Ø65mm ,Ø69mm, Ø83mm |

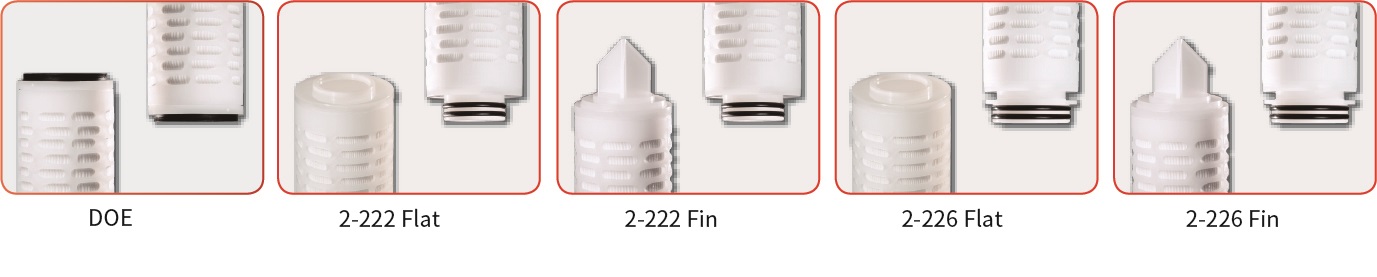

| End Cap | DOE, 2-222 Flat, 2-222 Fin, 2-226 Flat, 2-226 Fin |
| Gasket/O-ring | Silicone, EPDM, Viton, Teflon Encapsulated Viton, Teflon |
| Applications | RO/DI Process, Ink, Etchants, Developers, Chemicals, Cosmetics, Medicine Filtration, Process Gases, Food & Beverage |
| Filter Media |
Polypropylene |
|---|---|
| Micron Rating |
0.2, 0.45, 0.8, 1, 2, 3, 5, 10, 20, 30, 40, 50, 70, 100 μm |
| Operating Conditions |
△P : 4.8 bar at 25℃, 1.4 bar at 80℃ |
| Filter Media |

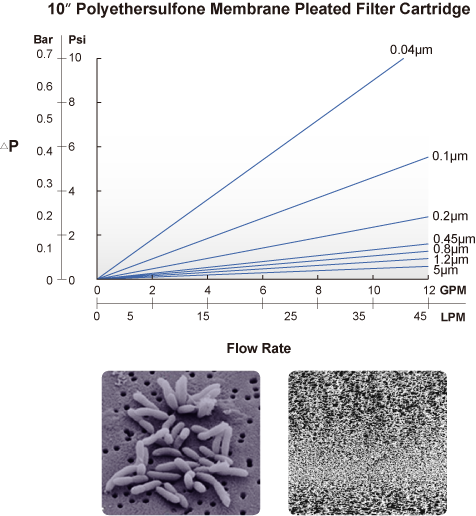

Polyethersulfone |
|---|---|
| Micron Rating |
0.04, 0.1, 0.2, 0.45, 0.6, 0.8, 1.2 μm |
| Operating Conditions |
△P : 4.8 bar at 25℃, 1.4 bar at 80℃ |
| Filter Media |
Nylon |
|---|---|
| Micron Rating |
0.1, 0.2, 0.45, 1 μm |
| Operating Conditions |
△P : 4.8 bar at 25℃, 1.8 bar at 90℃ |
| Filter Media |
PVDF |
|---|---|
| Micron Rating |
0.1, 0.2, 0.45, 1 μm |
| Operating Conditions |
△P : 4.8 bar at 25℃, 2.1 bar at 90℃ |
| Filter Media |
Hydrophobic PTFE |
|---|---|
| Micron Rating |
0.05, 0.1, 0.2, 0.45, 1, 3, 5, 10 μm |
| Operating Conditions |
△P : 4.8 bar at 25℃, 2.1 bar at 90℃ |
| Filter Media |
Hydrophilic PTFE |
|---|---|
| Micron Rating |
0.05, 0.1, 0.2, 0.45, 1, 3, 5, 10 μm |
| Operating Conditions |
△P : 4.8 bar at 25℃, 2.1 bar at 90℃ |
| Filter Media |

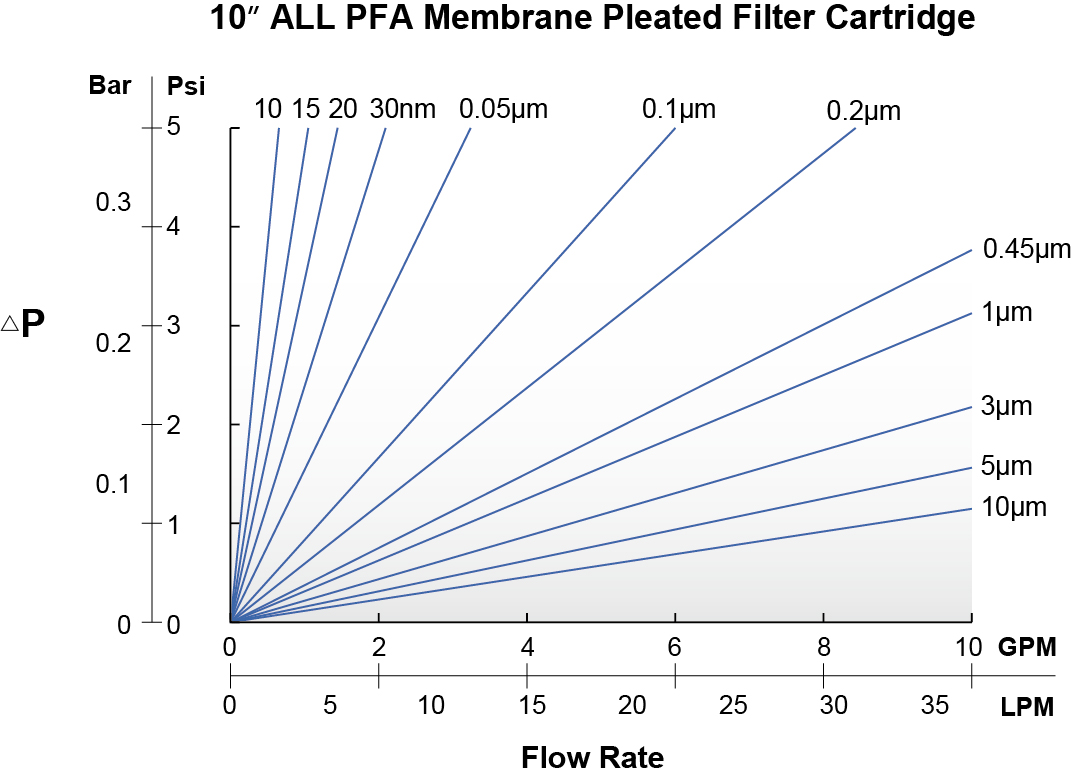

All Fluoropolymer |
|---|---|
| Micron Rating |
0.05, 0.1, 0.2, 0.45, 1 μm |
| Operating Conditions |
△P : 5.5 bar at 25℃, 2.1 bar at 140℃ |
