Test Criterion:
        D.O.P.
                            Testing    95%  at      0.3 μm
        P.S.L.



Qualified with:
        En 1822 Class H10

Specifications
Type Dimensions(mm)
without Inlet Duct

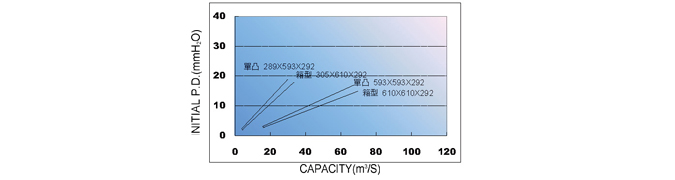

Capacity Initial P.D. Final P.D.
Length
(L)
Width
(W)
Depth
(D)
Box Type 305 g610 292 28.3 CMM 12.5mm H2O 50.8mm H2O
610 610 292 56.6 CMM
Single Flange 289 593 292 28.3 CMM 13.6mm H2O
593 593 292 56.6 CMM


Test Criterion:
        D.O.P.
                            Testing    95%  at      0.3 μm
        P.S.L.



Qualified with:
        En 1822 Class H10

Specifications
Type Dimensions(mm)
without Inlet Duct
Capacity Initial P.D. Final P.D.
Length
(L)
Width
(W)
Depth
(D)
Box Type 305 610 292 28.3 CMM 12.5mm H2O 50.8mm H2O
610 610 292 56.6 CMM
Single Flange 289 593 292 28.3 CMM 13.6mm H2O
593 593 292 56.6 CMM
