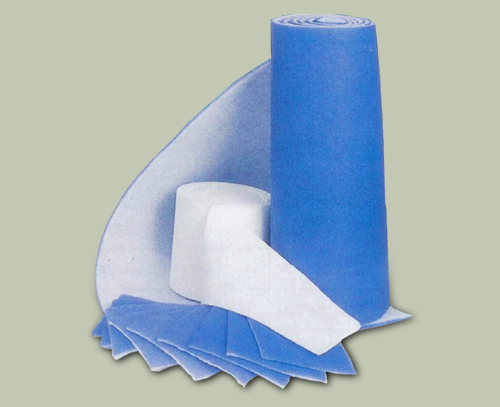

polyester filter media is safe and easy to handle and does not break down in use. Suitable for uses where fiberglass is not indicated, such as food processing and medical facilities. Fibers are held together with resin that is flame retardant and moisture resistant.
    Media consisting of 100% polyester bonded fibers is formed into an interlocking pattern that traps dust and lint, while minimizing face surface loading. Polyester media fibers won’t break off and flow into air stream.     Used to replace fiberglass filters where minimal downstream contamination is required. Filters have metal support on both sides and a heavy cardboard frame. For all heating ventilating, and air-conditioning applications.

Specifications
Type Nominal Depth
(mm)
Wind Velocity
(V m/s)
Resistance Efficiency
(%)
Dust
(g/m2)
Initial
(mmag)
End
(mmag)
PF-03 1x50 M 3 1.0/2.0 1.8/2.0 10 58 450
PF-05 1x50 M 5 1.0/2.5 2.5/3.0 15 60 450
PF-07 1x20 M 7 1.0/2.5 3.0/3.5 15 70 450
PF-10 1x20 M 10 1.0/2.5 4.0/4.7 20 80 600
PF-15 1x20 M 15 1.0/2.5 4.5/6.4 20 83 520
PF-20 1x20 M 20 1.0/2.5 5.0/9.0 20 85 460
PF-25 1x20 M 25 1.0/2.5 6.1/10.0 20 88 400
PF-30 1x20 M 30 2.5 11 25 90 400
Applications
HVAC system, Waste Treatment, Contaminated Process Air
