Test Criterion：
D.O.P.
Testing 95% at 0.3 μm
P.S.L.

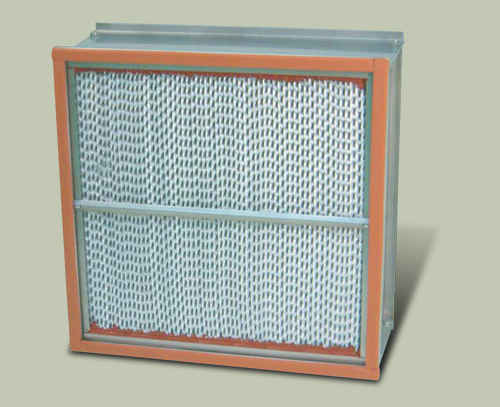

High temperature filter can be used in baking machinery in electronics industry, clean room and high temperature process lines, such as painting room for automobiles.
High temperature frame is mostly made of SUS material, Galvanized steel and aluminum board.
High temperature filters are durable under high condition to provide a clearified and satisfied environment.

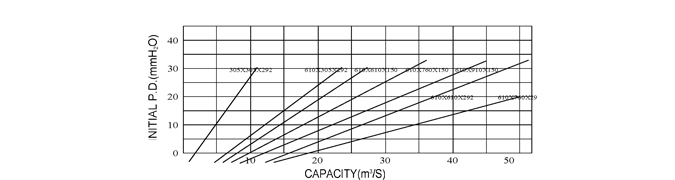

| Specifications | |||||
|---|---|---|---|---|---|
| Dimension(inch) | Capacity | Initial P.D. | Final P.D. | ||
| Length (L) |
Width (W) |
Depth (D) |
|||
| 12 | 12 | 57/8 | 4.2 CMM | 25.4mm H2O | 50.8mm H2O |
| 24 | 12 | 57/8 | 8.5 CMM | ||
| 24 | 24 | 57/8 | 17.0 CMM | ||
| 24 | 30 | 57/8 | 21.0 CMM | ||
| 24 | 36 | 57/8 | 26.0 CMM | ||
| 24 | 48 | 57/8 | 35.0 CMM | ||
| 24 | 12 | 111/2 | 7.0 CMM | ||
| 24 | 12 | 111/2 | 15.0 CMM | ||
| 24 | 24 | 111/2 | 32.0 CMM | ||
| 24 | 30 | 111/2 | 41.0 CMM | ||
| 24 | 36 | 111/2 | 47.0 CMM | ||
| 233/8 | 23 | 111/2 | 31.0 CMM | ||
