┃Pleated Filter Cartridges┃
PP Fiber Pleated Filter Cartridges
| Length | 5″, 10″, 20″, 30″, 40″, 50″, 60″, 70″ |
| Outside Diameter | Ø65mm, Ø69mm, Ø83mm |
| End Cap | DOE, 2-222 FLAT, 2-222 FIN, 2-226 FLAT, 2-226 FIN |
| Gasket/O-ring | Silicone, EPDM, Viton, FEP Encapsulated Viton, PTFE |
| Applications | RO/DI Process, Ink, Etchants, Developers, Chemicals, Cosmetics, Medicine Filtration, Process Gases, Food & Beverage |
| Filter Media | Polypropylene |
| Micron Rating | 0.1, 0.2, 0.5, 0.8, 1, 2, 3, 5, 10, 20, 30, 40, 50, 70, 100 μm |
| Operating Data | ∆P : 4.8 bar at 25℃, 1.4 bar at 80℃ |
PES Membrane Pleated Filter Cartridges
| Length | 5″, 10″, 20″, 30″, 40″, 50″, 60″, 70″ |
| Outside Diameter | Ø65mm, Ø69mm, Ø83mm |
| End Cap | DOE, 2-222 FLAT, 2-222 FIN, 2-226 FLAT, 2-226 FIN |
| Gasket/O-ring | Silicone, EPDM, Viton, FEP Encapsulated Viton, PTFE |
| Applications | RO/DI Process, Chemicals, Medicine Filtration, Food & Beverage, Cooling water circulation |
| Filter Media | Polyethersulfone |
| Micron Rating | 20, 30, 40 nm
0.1, 0.2, 0.45, 0.8, 1.2, 5 μm |
| Operating Data | ∆P : 4.8 bar at 25°C, 1.4 bar at 80°C |
Hydrophobic PTFE Membrane Pleated Filter Cartridges
| Length | 5″, 10″, 20″, 30″, 40″, 50″, 60″, 70″ |
| Outside Diameter | Ø65mm, Ø69mm, Ø83mm |
| End Cap | DOE, 2-222 FLAT, 2-222 FIN, 2-226 FLAT, 2-226 FIN |
| Gasket/O-ring | Silicone, EPDM, Viton, FEP Encapsulated Viton, PTFE |
| Applications | RO/DI Process, Chemicals, Medicine Filtration, Food & Beverage, Cooling water circulation |
| Filter Media | Hydrophobic PTFE |
| Micron Rating | 20, 30, 50nm 0.1, 0.2, 0.45, 1, 3, 5, 10 μm |
| Operating Data | ∆P : 4.8 bar at 25°C, 2.1 bar at 90°C |
Hydrophilic PTFE Membrane Pleated Filter Cartridges
| Length | 5″, 10″, 20″, 30″, 40″, 50″, 60″, 70″ |
| Outside Diameter | Ø65mm, Ø69mm, Ø83mm |
| End Cap | DOE, 2-222 FLAT, 2-222 FIN, 2-226 FLAT, 2-226 FIN |
| Gasket/O-ring | Silicone, EPDM, Viton, FEP Encapsulated Viton, PTFE |
| Applications | RO/DI Process, Chemicals, Medicine Filtration, Food & Beverage, Cooling water circulation |
| Filter Media | Hydrophilic PTFE |
| Micron Rating | 20, 30, 50nm 0.1, 0.2, 0.45, 1, 3, 5, 10 μm |
| Operating Data | ∆P : 4.8 bar at 25°C, 2.1 bar at 90°C |
PSU Membrane Pleated Filter Cartridges
| Length | 5″, 10″, 20″, 30″, 40″, 50″, 60″, 70″ |
| Outside Diameter | Ø65mm, Ø69mm, Ø83mm |
| End Cap | DOE, 2-222 FLAT, 2-222 FIN, 2-226 FLAT, 2-226 FIN |
| Gasket/O-ring | Silicone, EPDM, Viton, FEP Encapsulated Viton, PTFE |
| Applications | RO/DI Process, Chemicals, Medicine Filtration, Food & Beverage, Cooling water circulation |
| Filter Media | Polysulfone |
| Micron Rating | 0.05, 0.1, 0.2, 0.45, 0.6, 1 μm |
| Operating Data | ∆P : 4.8 bar at 25°C, 2.1 bar at 90°C |
PVDF Membrane Pleated Filter Cartridges
| Length | 5″, 10″, 20″, 30″, 40″, 50″, 60″, 70″ |
| Outside Diameter | Ø65mm, Ø69mm, Ø83mm |
| End Cap | DOE, 2-222 FLAT, 2-222 FIN, 2-226 FLAT, 2-226 FIN |
| Gasket/O-ring | Silicone, EPDM, Viton, FEP Encapsulated Viton, PTFE |
| Applications | RO/DI Process, Chemicals, Medicine Filtration, Food & Beverage, Cooling water circulation |
| Filter Media | PVDF |
| Micron Rating | 0.1, 0.2, 0.45, 1 μm |
| Operating Data | ∆P : 4.8 bar at 25°C, 2.1 bar at 90°C |
Nylon Membrane Pleated Filter Cartridges
| Length | 5″, 10″, 20″, 30″, 40″, 50″, 60″, 70″ |
| Outside Diameter | Ø65mm, Ø69mm, Ø83mm |
| End Cap | DOE, 2-222 FLAT, 2-222 FIN, 2-226 FLAT, 2-226 FIN |
| Gasket/O-ring | Silicone, EPDM, Viton, FEP Encapsulated Viton, PTFE |
| Applications | RO/DI Process, Chemicals, Medicine Filtration, Food & Beverage, Cooling water circulation |
| Filter Media | Nylon |
| Micron Rating | 5, 10, 20, 50 nm 0.1, 0.2, 0.45, 1 μm |
| Operating Data | ∆P : 4.8 bar at 25°C, 2.1 bar at 90°C |
Glass Fiber Pleated Filter Cartridges
| Length | 5″, 10″, 20″, 30″, 40″, 50″, 60″, 70″ |
| Outside Diameter | Ø65mm, Ø69mm, Ø83mm |
| End Cap | DOE, 2-222 FLAT, 2-222 FIN, 2-226 FLAT, 2-226 FIN |
| Gasket/O-ring | Silicone, EPDM, Viton, FEP Encapsulated Viton, PTFE |
| Applications | RO/DI Process, Chemicals, Medicine Filtration, Food & Beverage, Cooling water circulation |
| Filter Media | GLASS FIBER |
| Micron Rating | 0.2, 0.45, 1, 5, 10 μm |
| Operating Data | ∆P : 4.8 bar at 25°C, 2.1 bar at 90°C |
High-Flow Pleated Filter Cartridges
| Material | Polypropylene, Polyester |
| Length | 5″, 10″, 20″, 30″, 40″ other Customization |
| Micron Rating | 0.5, 1, 5, 10, 20, 30, 50, 100 μm |
| End Cap | DOE, 2-222 FLAT, 2-222 FIN, 2-226 FLAT, 2-226 FIN |
| Operating Data | ∆P : 3.0 bar at 25°C, 2.4 bar at 50°C |
| Applications | PCW, Pre RO/DI, Chemical Processing |
P-type High-Flow Filter Cartridges
| Filter Media | Polypropylene, Polyester, Glass Fiber, Stainless Steel |
| Length | 20″, 40″, 60″ and Customized |
| Micron Rating | 0.2, 0.5, 1, 5, 10, 20, 40, 50, 70, 100 μm |
| Flow Rate | 20″:40 CMH , 40″:85 CMH ,60″:110 CMH |
| Operating Date | ∆P : 4.8 bar at 25°C |
| Applications | Pre RO/DI, PCW , Recycled Water, High-Flow Filtration, Petrochemical Processing |
┃Melt Blown Filter Cartridges┃
Melt Blown Filter Cartridges
| Material | Polypropylene |
| Length | 5″, 6″, 9.75″, 10″, 19.5″, 20″, 29.5″, 30″, 39″, 40″ other Customized Sizes |
| Micron Rating | 1, 5, 10, 25, 50, 75, 100 μm |
| End Cap | DOE, 2-222 FLAT, 2-222 FIN, 2-226 FLAT, 2-226 FIN |
| Operating Data | ∆P : 3.0 bar at 25°C, 2.0 bar at 40°C, 1.0 bar at 60°C |
| Applications | PCB, Electroplating, Reverse Osmosis Pretreatment, Reclaimed Water Treatment, Chemical and Petrochemical Processing, Food and Beverage |
Absolute-Rated Melt-Blown Filter Cartridges
| Material | Polypropylene |
| Length | 5″, 6″, 9.75″, 10″, 19.5″, 20″, 29.5″, 30″, 39″, 40″ and Customization |
| Micron Rating | 0.5, 1, 3, 5, 10, 25, 50, 75, 100 μm |
| End Cap | DOE, 2-222 FLAT, 2-222 FIN, 2-226 FLAT, 2-226 FIN |
| Operating Data | ∆P : 4.0 bar at 25°C, 2.0 bar at 60°C, 1.0 bar at 80°C |
| Applications | Flexible Particles Involving Process, Electroplating, Chemical and Petrochemical Processing, High Temperature and Pressure Manufacturing Process |
┃Liquid Filter Bags┃
Liquid Filter Bags
| Filter Media | PP, PET, Nylon, PTFE, Nomex, Different kinds of woven, non-woven fabric, mesh fabric, oil-absorbing fabric, activated carbon |
| Top Ring | PP, Nylon, Santoprene, Galvanized Steel, Stainless Steel |
| Ring Type | F Ring, G Ring and Others |
| Seam | Sewn, Welded |
| Micron Rating | 0.5 ~ 1000 μm |
| Size | #1 (Ø17.8 cm × 42 cm, Q : 20 CMH) #2 (Ø17.8 cm × 81 cm, Q : 45 CMH) #3 (Ø10.1 cm × 23 cm, Q : 4.5 CMH) #4 (Ø10.1 cm × 38 cm, Q : 10 CMH) X100 Series (Ø15 cm × 52 cm) U Series (Ø11.8 cm × 52 cm) BP Series (Ø22 cm × 43 cm) Y Series (Ø20 cm × 33 cm) Others |
Filter Clothes
| Filter Media | PP, PET, Nylon, oil-absorbing fabric, activated carbon fabric |
| Type | Non-Woven, Woven, Brushed Woven, Woven Mesh |
| Micron Rating | 0.5 ~ 1000 μm |
┃Stainless Steel Filter Cartridges┃
Pleated Wire Mesh Filter Cartridges
| Material | SUS304, SUS316, SUS316L |
| Length | 5″, 10″, 20″, 30″, 40″ and Customizable lengths available |
| Micron Rating | 1 ~ 1000 μm |
| Mesh Type | Plain Weave, Dutch Twill Weave, Plain Dutch Weave, Non-woven metal fiber, 3-or 5-layer sintered mesh |
| End Caps | DOE, 2-222, 2-226, and others |
| Max. Operating Temperature | 350°C |
| Max. Operating Pressure | 5 ~ 250 bar (based on specific requirements) |
| Applications | CPF, CPL, Petrochemical Processing, Acid/Alkali,High Density Treatment, Steam Filtration, Beverage Industry |
Pleated Non-woven Metal Fiber Filter Cartridges
| Material | SUS316, SUS316L |
| Length | 5″, 10″, 20″, 30″, 40″ and Customizable lengths available |
| Micron Rating | 3 ~ 60 μm |
| Type | Non-woven metal fiber |
| End Caps | DOE, 2-222, 2-226, and others |
| Max. Operating Temperature | 350°C |
| Max. Operating Pressure | 5 ~ 250 bar (based on specific requirements) |
| Applications | CPF, CPL, Petrochemical Processing, Acid/Alkali,High Density Treatment, Steam Filtration, Beverage Industry |
5-Layer Sintered Wire Mesh Filter Cartridges
| Material | SUS304, SUS316, SUS316L |
| Length | 5″, 10″, 20″, 30″, 40″ and Customizable lengths available |
| Micron Rating | 1 ~ 200 μm |
| Type | 5-Layer Sintered Wire Mesh |
| End Caps | DOE, 2-222, 2-226, and others |
| Max. Operating Temperature | 350°C |
| Max. Operating Pressure | 5 ~ 250 bar (based on specific requirements) |
| Applications | CPF, CPL, Petrochemical Processing, Acid/Alkali,High Density Treatment, Steam Filtration, Beverage Industry |
Sintered Powder Metal Filter Cartridges
| Material | SUS304, SUS316, SUS316L, Titanium, Nickel, Copper and Others |
| Length | 5″, 10″, 20″, 30″, 40″ and Customization |
| Micron Rating | 0.35 ~ 100 μm |
| Type | Metal Sintered Powder |
| End Caps | DOE, 2-222, 2-226, and others |
| Max. Operating Temperature | 350°C |
| Max. Operating Pressure | 5 ~ 250 bar (according to the spec.) |
| Applications | CPF, CPL, Petrochemical Processing, Acid/Alkali, High Density Treatment, Steam Filtration, Beverage Industry |
┃Stainless Steel Cartridge Filter Housings┃
High-Flow Multi-Cartridge Filter Housings
| Filter Length | 10″, 20″, 30″, 40″ |
| Number of Cartridges | 8 ~ 173 rounds |
| Material | SUS304, SUS316, SUS316L |
| In/Outlet | 2″ ~ 15″ Flange |
| Flow Rate | 0 ~ 1384 CMH Depending on the specification and quantity of the filter cartridge |
| Max. Operating Pressure | 10 bar |
| Applications | Reverse Osmosis Pretreatment, PCW Filtration, Circulating Filtration, Chemical Processing, Reclaimed Water Treatment, Beverage Industry |

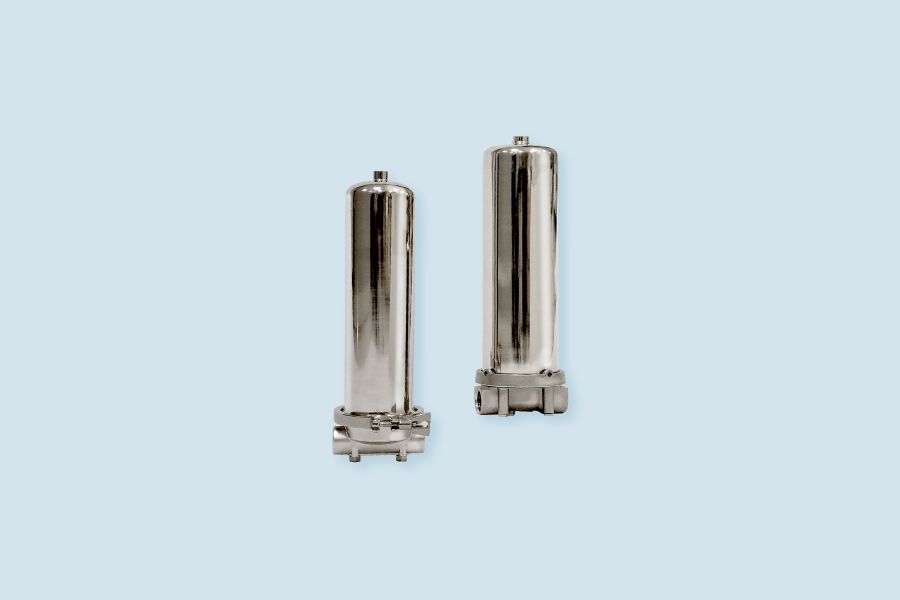

Stainless Steel Single-Cartridge Filter Housings
| Filter Length | 5″, 10″, 20″, 30″, 40″ Ø145 mm: 10″, 20″ |
| Material | SUS304, SUS316 |
| In/Outlet | 3/4″, 1″ NPT,1 1/2″ Flange |
| Closure Type | V-Clamp Closure |
| Flow rate | 0.5 ~ 10 CMH Flow rate may vary according to different model & element type |
| Filter Type | DOE, 2-222 Flat, 2-222 Fin |
| Max. Operating Pressure | 7 bar |
| Applications | Circulating Filtration System, PCW, Chemical Processing |
┃Stainless Steel Bag Filter Housings┃
High-Flow Multi-Bag Filter Housings
| Filter Size | Bag#1, Bag#2 |
| Number of Filter Bags | 2 ~ 50 |
| Material | SUS304, SUS316, SUS316L |
| In/Outlet | 2″ ~ 15″ Flange |
| Flow Rate | 0 ~ 2250 CMH Depending on the specification and quantity of the filter bags |
| Max. Operating Pressure | 10 bar |
| Applications | Reverse Osmosis Pretreatment, PCW Filtration, Circulating Filtration System,Chemical Processing, Reclaimed Water Treatment, Automotive, Paints, Inks, Resins and Coatings, Beverage Industry |
