┃Melt Blown Filter Cartridges┃
Melt-Blown Filter Cartridges
| Type | PP Melt-Blown Filter Cartridges |
| Material | Polypropylene |
| Length | 5, 6, 9.75, 10, 19.5, 20, 29.25, 29.5, 30, 39, 40 inch and customized |
| Micron Rating | 1, 5, 10, 25, 50, 75, 100 μm |
| End Cap | DOE, 2-222Fin, 2-222Flat, 2-226Fin, 2-226Flat |
| Operating Data | ∆P : 3.0 bar at 25°C, 2.0 bar at 40°C, 1.0 bar at 60°C |
| Applications | PCB, Electroplating, Reverse Osmosis Pretreatment, Reclaimed Water Treatment, Chemical and Petrochemical Processing, Food and Beverage |
Absolute-Rated Melt-Blown Filter Cartridges
| Type | PP Absolute-Rated Melt-Blown Filter Cartridges |
| Filter Media | Polypropylene |
| Length | 5, 6, 9.75, 10, 19.5, 20, 29.25, 29.5, 30, 39, 40 inch and customized |
| Micron Rating | 0.5, 1, 3, 5, 10, 25, 50, 75, 100 μm |
| End Cap | DOE, 2-222Fin, 2-222Flat, 2-226Fin, 2-226Flat |
| Operating Data | ∆P : 4.0 bar at 25°C, 2.0 bar at 60°C, 1.0 bar at 80°C |
| Applications | Flexible Particles Involving Process, Electroplating, Chemical and Petrochemical Processing, High Temperature and Pressure Manufacturing Process |
┃String-Wound Filter Cartridges┃
String-Wound Filter Cartridges
| Material | Polypropylene, Bleached Cotton, Glass Fiber |
| Central Core | PP, SUS304, SUS316 |
| Length | 9.75, 10, 19.5, 20, 29.25, 29.5, 30, 39, 40 inch and Customized |
| Micron Rating | 1, 5, 10, 20, 30, 50, 75, 100, 150 μm |
| End Cap | DOE, 2-222 Fin, 2-222 Flat, 2-226 Fin, 2-226 Flat |
| PP Type Applications |
PCB, Electroplating, Chemical and Petrochemical Processing,Reclaimed Water Treatment, Food and Beverage |
| Cotton Type Applications |
Solvent, Ultrasonic cleaning, Chemical and Petrochemical Processing, Beverage Industry, High Temeprature Processes, Steam Filtration |
| Glass Fiber Type Applications |
High Temperature Filtration up to 250°C |
┃Activated Carbon Filter Cartridges┃
Activated Carbon Block
| Filter Cartridges | Nominal Type: 10, 20, 30, 40 inch High Flow Large Size: 10, 20 inch |
| Applications | PCB, Electroplating, Reverse Osmosis Pretreatment, Chemical Processing, General Filtration, Reclaimed Water Treatment |

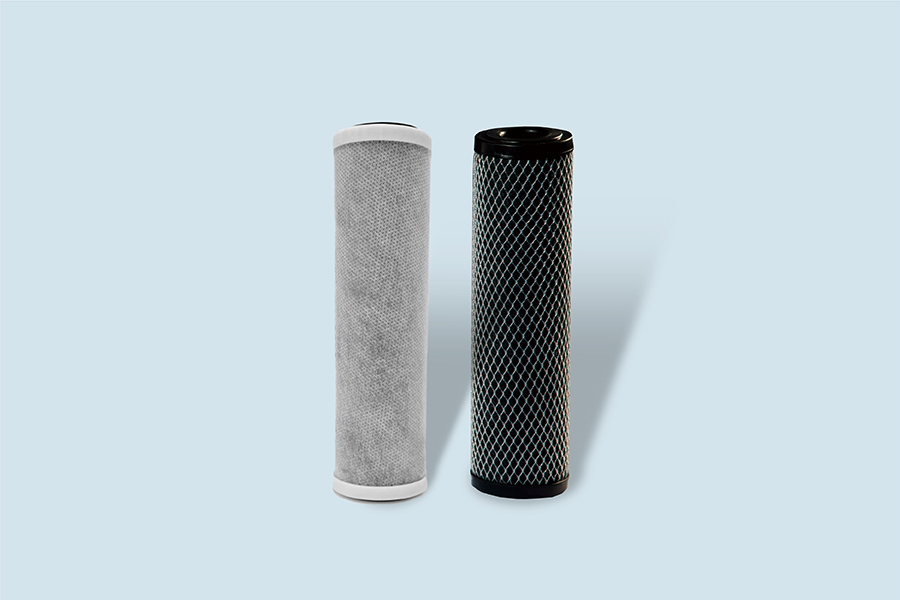

Activated Carbon Nonwoven Fabric Filter Cartridges
| Filter Cartridges | Nominal Type: 10, 20, 30, 40 inch High Flow Large Size: 10, 20 inch |
| Applications | PCB, Electroplating, Reverse Osmosis Pretreatment, Chemical Processing, General Filtration, Reclaimed Water Treatment |
Carbon Impregnated Cellulose Filter Cartridges
| Type | Nominal Type: 10, 20, 30, 40 inch High Flow Large Size: 10, 20 inch |
| Applications | PCB, Electroplating, Reverse Osmosis Pretreatment, Chemical Processing, General Filtration, Reclaimed Water Treatment |
Granular Carbon PP String Wound Filter Cartridges
| Type | Nominal Type: 10, 20, 30, 40 inch High Flow Large Size: 10, 20 inch |
| Applications | PCB, Electroplating, Reverse Osmosis Pretreatment, Chemical Processing, General Filtration, Reclaimed Water Treatment |
Customized Activated Carbon Nonwoven Fabric Filter Cartridges
| Type | Nominal Type: 10, 20, 30, 40 inch High Flow Large Size: 10, 20 inch |
| Applications | PCB, Electroplating, Reverse Osmosis Pretreatment, Chemical Processing, General Filtration, Reclaimed Water Treatment |
┃Pleated Filter Cartridges┃
PP Fiber Pleated Filter Cartridges
| Length | 5, 10, 20, 30, 40, 50, 60, 70 inch |
| Outside Diameter | Ø65mm, Ø69mm, Ø83mm |
| End Caps | DOE, 2-222 FLAT, 2-222 FIN, 2-226 FLAT, 2-226 FIN |
| Gasket/O-ring | Silicone, EPDM, Viton, PTFE Encapsulated Viton, PTFE |
| Applications | RO/DI Process, Ink, Etchants, Developers, Chemicals, Medicine Filtration, Process Gases, Food & Beverage |
| Filter Media | Polypropylene |
| Micron Rating | 0.2, 0.5, 0.8, 1, 2, 3, 5, 10, 20, 30, 40, 50, 70, 100 μm |
| Operating Data | ∆P : 4.8 bar at 25°C, 1.4 bar at 80°C |
PES Membrane Pleated Filter Cartridges
| Length | 5, 10, 20, 30, 40, 50, 60, 70 inch |
| Outside Diameter | Ø65mm, Ø69mm, Ø83mm |
| End Caps | DOE, 2-222 FLAT, 2-222 FIN, 2-226 FLAT, 2-226 FIN |
| Gasket/O-ring | Silicone, EPDM, Viton, PTFE Encapsulated Viton, PTFE |
| Applications | RO/DI Process, Chemicals, Medicine Filtration, Food & Beverage, Cooling water circulation |
| Filter Media | Polyethersulfone |
| Micron Rating | 0.04, 0.1, 0.2, 0.45, 0.8, 1.2, 5 μm |
| Operating Data | ∆P : 4.8 bar at 25°C, 1.4 bar at 80°C |
Hydrophobic PTFE Membrane Pleated Filter Cartridges
| Length | 5, 10, 20, 30, 40, 50, 60, 70 inch |
| Outside Diameter | Ø65mm, Ø69mm, Ø83mm |
| End Caps | DOE, 2-222 FLAT, 2-222 FIN, 2-226 FLAT, 2-226 FIN |
| Gasket/O-ring | Silicone, EPDM, Viton, PTFE Encapsulated Viton, PTFE |
| Applications | RO/DI Process, Chemicals, Medicine Filtration, Food & Beverage, Cooling water circulation |
| Filter Media | Hydrophobic PTFE |
| Micron Rating | 10, 15, 20, 30nm 0.05, 0.1, 0.2, 0.45, 1, 3, 5, 10 μm |
| Operating Data | ∆P : 4.8 bar at 25°C, 2.1 bar at 90°C |
Hydrophilic PTFE Membrane Pleated Filter Cartridges
| Length | 5, 10, 20, 30, 40, 50, 60, 70 inch |
| Outside Diameter | Ø65mm, Ø69mm, Ø83mm |
| End Caps | DOE, 2-222 FLAT, 2-222 FIN, 2-226 FLAT, 2-226 FIN |
| Gasket/O-ring | Silicone, EPDM, Viton, PTFE Encapsulated Viton, PTFE |
| Applications | RO/DI Process, Chemicals, Medicine Filtration, Food & Beverage, Cooling water circulation |
| Filter Media | Hydrophilic PTFE |
| Micron Rating | 10, 15, 20, 30nm 0.05, 0.1, 0.2, 0.45, 1, 3, 5, 10 μm |
| Operating Data | ∆P : 4.8 bar at 25°C, 2.1 bar at 90°C |
Polysulfone Membrane Pleated Filter Cartridges
| Length | 5, 10, 20, 30, 40, 50, 60, 70 inch |
| Outside Diameter | Ø65mm, Ø69mm, Ø83mm |
| End Caps | DOE, 2-222 FLAT, 2-222 FIN, 2-226 FLAT, 2-226 FIN |
| Gasket/O-ring | Silicone, EPDM, Viton, PTFE Encapsulated Viton, PTFE |
| Applications | RO/DI Process, Chemicals, Medicine Filtration, Food & Beverage, Cooling water circulation |
| Filter Media | Polysulfone |
| Micron Rating | 0.05, 0.1, 0.2, 0.45, 0.6, 1 μm |
| Operating Data | ∆P : 4.8 bar at 25°C, 2.1 bar at 90°C |
PVDF Membrane Pleated Filter Cartridges
| Length | 5, 10, 20, 30, 40, 50, 60, 70 inch |
| Outside Diameter | Ø65mm, Ø69mm, Ø83mm |
| End Caps | DOE, 2-222 FLAT, 2-222 FIN, 2-226 FLAT, 2-226 FIN |
| Gasket/O-ring | Silicone, EPDM, Viton, PTFE Encapsulated Viton, PTFE |
| Applications | RO/DI Process, Chemicals, Medicine Filtration, Food & Beverage, Cooling water circulation |
| Filter Media | PVDF |
| Micron Rating | 0.1, 0.2, 0.45, 1 μm |
| Operating Data | ∆P : 4.8 bar at 25°C, 2.1 bar at 90°C |
Nylon Membrane Pleated Filter Cartridges
| Length | 5, 10, 20, 30, 40, 50, 60, 70 inch |
| Outside Diameter | Ø65mm, Ø69mm, Ø83mm |
| End Caps | DOE, 2-222 FLAT, 2-222 FIN, 2-226 FLAT, 2-226 FIN |
| Gasket/O-ring | Silicone, EPDM, Viton, PTFE Encapsulated Viton, PTFE |
| Applications | RO/DI Process, Chemicals, Medicine Filtration, Food & Beverage, Cooling water circulation |
| Filter Media | Nylon |
| Micron Rating | 5, 10, 20, 50 nm 0.1, 0.2, 0.45, 1 μm |
| Operating Data | ∆P : 4.8 bar at 25°C, 2.1 bar at 90°C |
Glass Fiber Pleated Filter Cartridges
| Length | 5, 10, 20, 30, 40, 50, 60, 70 inch |
| Outside Diameter | Ø65mm, Ø69mm, Ø83mm |
| End Caps | DOE, 2-222 FLAT, 2-222 FIN, 2-226 FLAT, 2-226 FIN |
| Gasket/O-ring | Silicone, EPDM, Viton, PTFE Encapsulated Viton, PTFE |
| Applications | RO/DI Process, Chemicals, Medicine Filtration, Food & Beverage, Cooling water circulation |
| Filter Media | GLASS FIBER |
| Micron Rating | 0.2, 0.45, 1, 5, 10 μm |
| Operating Data | ∆P : 4.8 bar at 25°C, 2.1 bar at 90°C |
High-Flow Pleated Filter Cartridges
| Filter Media | Polypropylene, Polyester |
| Length | 5, 10, 20, 30, 40 inch , other Customized Sizes |
| Micron Rating | 0.5, 1, 5, 10, 20, 30, 50, 100 μm |
| End Caps | DOE, 2-222 Flat, 2-222 Fin, 2-226 Flat, 2-226 Fin |
| Operating Data | ∆P : 3.0 bar at 25°C, 2.4 bar at 50°C |
| Applications | PCW, Pre RO/DI, Chemical Processing |
Mini Chemical Filters
| Filter Media | Polypropylene, Polyethersulfone, Nylon, PTFE, PVDF, PFA |
| Length | 1/8″ , 1/4″ , Ø8mm Swagelok, Customized Sizes |
| Micron Rating | 10, 15, 20, 30 nm 0.05, 0.1, 0.2, 0.45, 1, 3, 5, 10 μm |
| Operating Data | 4.0 bar at 25°C |
| Applications | Photoresist, TFT-LCD |
┃Capsule Filters┃
Capsule Filters
| Filter Media | Polypropylene, Polyethersulfone, Nylon, PTFE, PVDF, Glass Fiber |
| Size | Ø72 x 96 mm, Ø72 x 155 mm |
| Port Size | 1/4″, 3/8″, 1/2″ NPTM 1/4″, 3/8″, 1/2″ Swagelok , other customized Sizes |
| Micron Rating | 10, 15, 20, 30, 40, 50 nm 0.1, 0.2, 0.45, 0.6, 0.8, 1, 2, 3, 5, 10, 20, 30, 40, 70 μm |
| Operating Data | 4.8 bar at 25°C |
| Applications | Photoresists, Pharmaceuticals, Small Volume Filtration,Laboratory Facilities, Air Filtration |
┃Liquid Filter Bags┃
Liquid Filter Bags
| Filter Media | PP, PET, Nylon, Teflon, Nomex Including various types of woven and non-woven fabrics, oil-absorbing fabrics, and activated carbon media. |
| Top Ring | PP, Nylon, Santoprene, Galvanized Steel, Stainless Steel |
| Ring Type | FSI, EATON and Others |
| Seam | Sewn, Welded |
| Micron Rating | 0.5 ~ 1000 μm |
| Size | #1 (Ø17.8 cm × 42 cm, Q : 20 CMH) #2 (Ø17.8 cm × 81 cm, Q : 45 CMH) #3 (Ø10.1 cm × 23 cm, Q : 4.5 CMH) #4 (Ø10.1 cm × 38 cm, Q : 10 CMH) X100 Series (Ø15 cm × 52 cm) U Series (Ø11.8 cm × 52 cm) BP Series (Ø22 cm × 43 cm) Y Series (Ø20 cm × 33 cm) Others |
Filter Clothes
| Filter Media | PP, PET, Nylon, oil-absorbing fabric, activated carbon fabric |
| Type | Non-Woven, Woven, Brushed Woven, Woven Mesh |
| Micron Rating | 0.5 ~ 1000 μm |
┃Stainless Steel Filter Cartridges┃
Pleated Wire Mesh Filter Cartridges
| Material | SUS304, SUS316, SUS316L |
| Length | 5, 10, 20, 30, 40 inch and Customizable lengths available |
| Micron Rating | 1 ~ 1000 μm |
| Mesh Type | Plain Weave, Dutch Twill Weave, Plain Dutch Weave, Non-woven metal fiber, 3/5 layers Sintered Mesh |
| End Caps | DOE, 2-222, 2-226, and others |
| Max. Operating Temperature | 350°C |
| Max. Operating Pressure | 5 ~ 250 bar (based on specific requirements) |
| Applications | CPF, CPL, Petrochemical Processing, Acid/Alkali,High Density Treatment, Steam Filtration, Beverage Industry |
Pleated Non-woven Metal Fiber Filter Cartridges
| Material | SUS316, SUS316L |
| Length | 5, 10, 20, 30, 40 inch and Customizable lengths available |
| Micron Rating | 3 ~ 60 μm |
| Type | Metal Fiber Non-woven |
| End Caps | DOE, 2-222, 2-226, and others |
| Max. Operating Temperature | 350°C |
| Max. Operating Pressure | 5 ~ 250 bar (based on specific requirements) |
| Applications | CPF, CPL, Petrochemical Processing, Acid/Alkali,High Density Treatment, Steam Filtration, Beverage Industry |
5-Layer Sintered Wire Mesh Filter Cartridges
| Material | SUS304, SUS316, SUS316L |
| Length | 5, 10, 20, 30, 40 inch and Customizable lengths available |
| Micron Rating | 1 ~ 200 μm |
| Type | 5-Layer Sintered Wire Mesh |
| End Caps | DOE, 2-222, 2-226, and others |
| Max. Operating Temperature | 350°C |
| Max. Operating Pressure | 5 ~ 250 bar (based on specific requirements) |
| Applications | CPF, CPL, Petrochemical Processing, Acid/Alkali,High Density Treatment, Steam Filtration, Beverage Industry |
Sintered Powder Metal Filter Cartridges
| Material | SUS304, SUS316, SUS316L |
| Length | 5, 10, 20, 30, 40 inch and Customizable lengths available |
| Micron Rating | 0.35 ~ 100 μm |
| Type | Metal Sintered Powder |
| End Caps | DOE, 2-222, 2-226, and others |
| Max. Operating Temperature | 350°C |
| Max. Operating Pressure | 5 ~ 250 bar (based on specific requirements) |
| Applications | CPF, CPL, Petrochemical Processing, Acid/Alkali,High Density Treatment, Steam Filtration, Beverage Industry |
┃Stainless Steel Cartridge Filter Housings┃
Stainless Steel Cartridge Filter Housings
| Filter Length | 5, 10, 20, 30, 40 inch |
| Number of Cartridges | 3~ 7 rounds |
| Material | SUS304, SUS316, SUS316L |
| In/Outlet | 1, 1 1/2, 2, 2 1/2, 3, 4 inch NPT,BSP,Flange,Clamp,Others |
| Flow Rate | 10″:0 ~ 7 CMH 20″:0 ~ 14 CMH 30″:0 ~ 21 CMH 40″:0 ~ 28 CMH *Above Flow rate is based on standard PP melt blown cartridge; Flowrate may vary according to different filter elements,High flow filter is optional to increase the flow and reduce the differential pressure. |
| Closure Type | V-Clamp |
| Max. Operating Pressure | 7 bar |
| Applications | Reverse Osmosis Pretreatment, PCW Filtration, Circulating Filtration, Chemical Processing, Reclaimed Water Treatment, Beverage Industry |
Stainless Steel Single-Cartridge Filter Housings
| Filter Length | 5, 10, 20, 30, 40 inch |
| Number of Cartridges | 3~ 7 rounds |
| Material | SUS304, SUS316, SUS316L |
| In/Outlet | 1, 1 1/2, 2, 2 1/2, 3, 4 inch NPT,BSP,Flange,Clamp,Others |
| Flow Rate | 10″:0 ~ 7 CMH 20″:0 ~ 14 CMH 30″:0 ~ 21 CMH 40″:0 ~ 28 CMH *Above Flow rate is based on standard PP melt blown cartridge; Flowrate may vary according to different filter elements,High flow filter is optional to increase the flow and reduce the differential pressure. |
| Closure Type | V-Clamp |
| Max. Operating Pressure | 7 bar |
| Applications | Reverse Osmosis Pretreatment, PCW Filtration, Circulating Filtration, Chemical Processing, Reclaimed Water Treatment, Beverage Industry |
Stainless Steel Sanitary Filter Housings
| Filter Length | 10, 20, 30, 40 inch |
| Number of Cartridges | single or multi-round |
| Material | SUS304, SUS316, SUS316L |
| In/Outlet | 1 ~ 6 inch Sanitary Clamp |
| Finish | Mechanical Polishing 400 mesh |
| Max. Operating Pressure | 7 bar Higher pressure housings can be customized |
| Applications | Pharmaceutical, Beverage Industry,Chemical Processing, Ultrapure Water Filtration |
┃Stainless Steel Bag Filter Housings┃
Stainless Steel Bag Filter Housings
| Filter Size & Flow Rate | #1: up to 20 CMH ; #2: up to 45 CMH #3: up to 4.5 CMH ; #4: up to 10 CMH Flow rate may vary according to different filter elements |
| Material | SUS304, SUS316, SUS316L |
| In/Outlet | 1, 1 1/2, 2, 2 1/2, 3, 4 inch NPT,BSP,Flange,Clamp,Others |
| Max. Operating Pressure | 7 bar |
| Applications | Reverse Osmosis Pretreatment, PCW Filtration, Circulating Filtration, Chemical Processing, Reclaimed Water Treatment, Beverage Industry |
Stainless Steel High Pressure Bag Filter Housings
Stainless Steel High Pressure Bag Filter Housings
| Filter Size & Flow Rate | #1: up to 20 CMH ; #2: up to 45 CMH #3: up to 4.5 CMH ; #4: up to 10 CMH Flow rate may vary according to different filter elements |
| Material | SUS304, SUS316, SUS316L |
| In/Outlet | 1, 1 1/2, 2, 2 1/2, 3, 4 inch NPT/BSP、Flange、Clamp or Others |
| Closure Type | Swing Bolt |
| Max.Operating Pressure | 10 bar |
| Applications | everse Osmosis Pretreatment, PCW Filtration, Circulating Filtration, Chemical Processing, Reclaimed Water Treatment, Beverage Industry |
┃Plastic Housing┃
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Proin urna nibh, laoreet vel lacinia sit amet
Plastic Filter Housings
| Filter Length | 5, 10, 20 inch |
| Material | Clear: Styrene Acrylonitrile (SAN), Blue: Polypropylene (PP) |
| In/Outlet | 1/4″, 1/2″, 3/4″ NPTF |
| Type | O-ring quantity: Single, Double |
| Flow Rate | Up to 2.5 CMH flow rate may vary according to different filter elements. |
| Filter Type | DOE |
| Color | Clear, Blue |
| Max. Operating Pressure | 7 bar at 25°C, 2 bar at 40°C |
| Applications | Circulating Filtration System,Reverse Osmosis Pretreatment, PCW Filtration |
Large-Size Plastic Filter Housings
| Filter Length | 10, 20 inch |
| Material | Clear: Styrene Acrylonitrile (SAN), Blue: Polypropylene (PP) |
| In/Outlet | 1″, 1 1/2″ NPTF |
| Type | O-ring quantity: Single, Double |
| Flow Rate | Up to 10 CMH Flowrate may vary according to different filter elements. |
| Filter Type | DOE |
| Color | Clear, Blue |
| Max. Operating Pressure | 7 bar at 25°C, 2 bar at 40°C |
| Applications | Circulating Filtration System,Reverse Osmosis Pretreatment, PCW Filtration |
